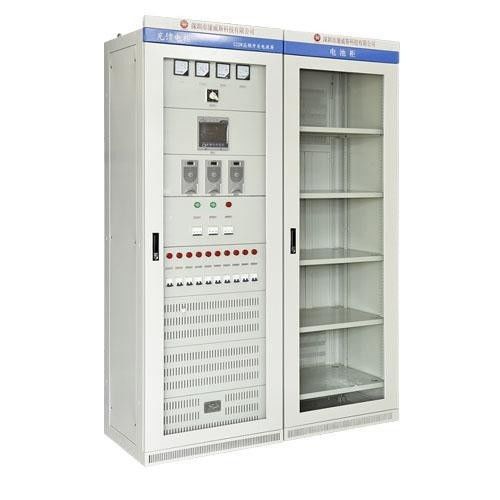

LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear

인증
중국 Knkong Electric Co.,Ltd 인증
중국 Knkong Electric Co.,Ltd 인증
제가 지금 온라인 채팅 해요

LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear

LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear
LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear

큰 이미지 :  LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear

제품 상세 정보:
원래 장소: 중국
브랜드 이름: KNKONG
인증: ISO IEC GB
모델 번호: DC
결제 및 배송 조건:
최소 주문 수량: 1
가격: USD 1000-2000 Each
포장 세부 사항: 표준 수출 포장
배달 시간: 15 일로 일합니다
지불 조건: L/C (신용장), 전신환
공급 능력: 달 당 1000년 단위

LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear

설명
타입: 전원 공급기 사용: 직류
전압: AC 380V ±20% 기준: CCC ISO GB 국제전기기술위원회
OEM / ODM: 이메일에 의한 조사 제조소: KNKONG
하이 라이트:

200AH Metal Enclosed Switchgear

,

LV DC Distribution Panel 200AH

,

150AH Metal Enclosed Switchgear

LV DC Distribution Panel 200AH 150AH Metal Enclosed Switchgear

DC Panel Power Supply

Capacity:40 65 80 100 150 200 300AH
Input voltage: AC 380V ±20%;
Stabilization accuracy0.5%
Steady current accuracy0.5%
Ripple coefficient0.5%
Conversion efficiency: 92%
Noise: 55dB
Inquire

Product Introduction

Product overview

GZDW series high frequency switching DC panel power supply is a special equipment that provides DC operation power for various closing switches and relay protection devices and as a DC power supply for power station control and signal. It is widely used in various large, medium and small power plants, substations ), electrified railways, large and medium-sized buildings, industrial and mining enterprises and institutions, substations, power distribution rooms, and places where DC power is needed for emergency lighting.



Features

Two AC inputs;

It is composed of multiple independent modules, N+1 backup;

Using intelligent management, it can autonomously complete all the functions of charging, equalizing and floating charging, and automatically compensate the temperature of the battery, effectively extending the ervice life of the battery;

The monitoring function is complete, highly intelligent, equipped with a standard communication interface to realize four remote functions;

You can choose to configure insulation tester and single battery voltage inspection function;

The system can be expanded with other additional functions: adding an inverter to achieve AC power distribution output, and adding a DC/DC conversion module to achieve DC48V (24V) output.



Technical

Input voltage: AC 380V ±20%;

Stabilization accuracy0.5%

Steady current accuracy0.5%

Ripple coefficient0.5%

Conversion efficiency: 92%

Noise: 55dB
