제품 상세 정보:
|
| 타입: | 건조한 | 모델: | CKSC |
|---|---|---|---|
| 핵심: | 철 | 기준: | CCC ISO GB 국제전기기술위원회 |
| OEM / ODM: | 이용 가능합니다 | 제조소: | KNKONG |

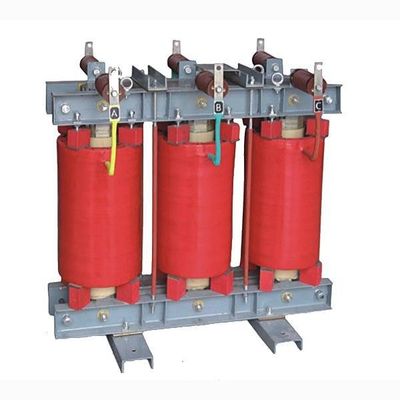

| 하이 라이트: | Dry Type Iron Core Reactor,Iron Core Reactor 100kVA,Iron Core Reactor 200kVA |
||
Product Introduction
Working condition:
1, Application Environment: Outdoors, indoors
2, The temperature of environment: -40°C-+45°C(according to the demand of user)
3, The latitude: (According to the demand of user)
4, The place of installation and running: Without severe vibration, can endure the 8 earthquake
5, The place of installation: without Harmful gases, stream, the Conductive and explosive ass
6, Maintain ventilation used indoors
7, The maximum wind speed: not more than
8, The compare moisture: no more than 90% of month average and no more than 95% of the daily average.
For the specification of CKSC type, 10kv system, three phase, the reactance ratio is 1%
|
Model |
Capacitor output(kVAr) |
Capacitor voltage (kV) |
Reactor output(kVAr) |
Inductance(mH) |
Rated current (A) |
|
CKSC-1/10-1% |
100 |
11√3 |
1 |
3*38.52 |
5.25 |
|
CKSC-2/10-1% |
200 |
11√3 |
2 |
3*19.26 |
