제품 상세 정보:
|
| 등급 전압: | 6-35kv | 작업 모드: | 자동장치 |
|---|---|---|---|
| 경보 방법: | 버저, 반짝이는 빛 | 전원 공급기: | 태양 |
| 하이 라이트: | IPX7 상부 라인 결함 표시기,JYW-KK 상부 라인 결함 표시기,태양 동력이 공급된 오버헤드 결함 표시기 |
||

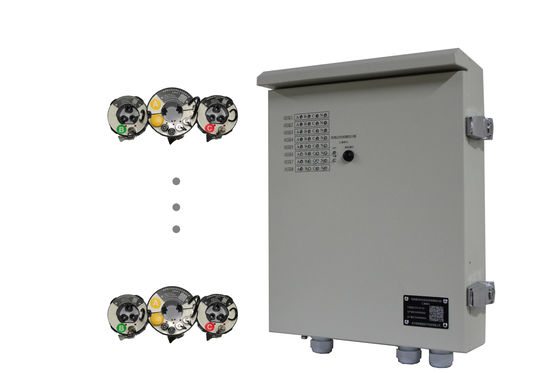

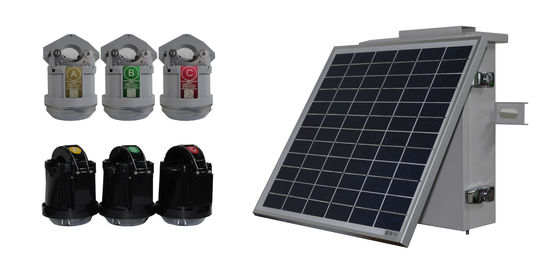

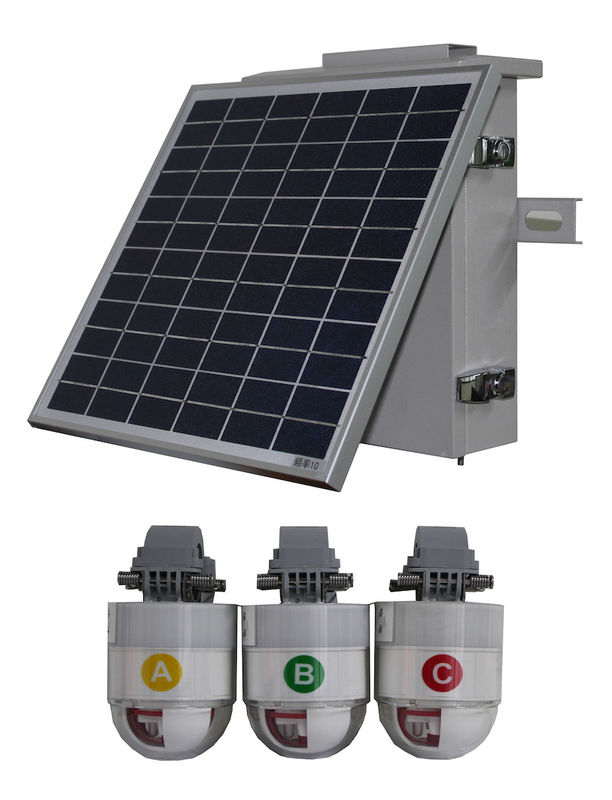

Solar Powered JYW-KK IPX7 Overhead Line Fault Indicator Automatic Warning
Product Introduction
1. Advantages
Be the first to apply Roche coils into this type of indicator, It has great linearity of test data and is not affected by wire diameter, thus guarantee test accuracy;
The "energy module" which use the anti-corrosion and high-permeability material with low-power system design enables the battery-free full-function operation at a primary current of 2A;
The three-level power architecture (CT power supply, supercapacitor, and disposable lithium battery) constitutes the power supply system let the equipment operates 24/7;
High-protection level "collection unit", withstands temperature shocks and long-term blisters, ensuring long-term outdoor working reliability;
Both the collection unit and the acquisition unit can be controlled remotely and wirelessly;
2. Technical Parameter
| Item | Parameter | |
|
Applications |
Voltage | 6～35kV |
| Neutral grounding method | Various grounding methods are available | |
| Wiring type | Overhead insulation and bare wires 35mm²～240mm² | |
|
Collection unit power supply |
Main power |
Solar power supply (the rated output voltage of the solar panel is 18V, and the capacity is based on necessary) |
| Backup power |
Rechargeable battery: Lithium iron phosphate or lead-acid colloid battery is dependent on necessary. All hardware design is compatible for them both. |
|
|
Acquisition unit power supply |
Main power | Line self-powered (5A full-function operation) |
| Backup power | Disposable lithium battery 3.6V, 8.5Ah | |
| Time of duration of the supercapacitor battery> 12 hours | ||
| Static power dissipation | Acquisition unit | ≤40uA |
| Collection unit | ≤0.2VA | |
| Telemetry accuracy | Current |
0～100A, measurement accuracy:±3A 100A～600A,measurement accuracy:±2% |
| Fault detection | Recognizable fault type | Short circuit between phases, various single-phase grounding |
| Instantaneous faults and permanent faults | ||
| Recognition minimum recognition time | 0.2s | |
|
Line status indication |
Indication | 360° omnidirectional bright LED |
| Flashing time after an outage | ＞2000h | |
| Fault reset method | A timed automatic reset can be set from 1 to 48 hours | |
| Power-on automatic reset and remote manual reset | ||
|
Local communication |
Frequency band | 430～480MHz |
| Communication distance | ＞50m | |
| Transmit power consumption | ＜25mA@+10dBm | |
| Receive power consumption | ＜3mA | |
| Communication frequency | 150kbps | |
| Mechanical properties | Weight | ＜1kg |
| Protection level | Acquisition unit IPX7；Collection unit IPX5 | |
| Working environment | Temperature | -40℃～70℃ |
| Humidity | 10%～100% | |
| Service life | Operating | ＞8 years |
| Failure-free time (average) |
MTBF≥70000h |
|
