제품 상세 정보:
|
| 정격 전압: | 10/20/35KV | 정격 수용량: | 30-2500kva |
|---|---|---|---|
| 정격 빈도: | 50Hz | 기준: | ISO IEC GB |
| OEM / ODM: | 이용 가능합니다 | 제조소: | KNKONG |
| 하이 라이트: | SCB Outdoor Dry Type Transformer,2500KVA Outdoor Dry Type Transformer,Three Phase Dry Type Transformer |
||
Product Introduction

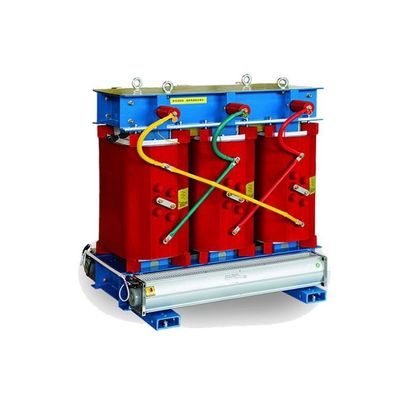

SCB series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high permeable grain orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials, scientific management, and perfect inspection means, our products have the following features.
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble, and has a low local discharge, high reliability, and long service life.
The high and low voltage systems are cast under vacuum, thus the coil will not absorb moisture. The clamps of the core are subjected to corrosion-resistant treatment. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not cause fire by the arc resulted from a short circuit. The resin will not generate toxic or harmful gas under high temperatures.
Company
Responsibility: Production research and development MV& LV switch , outdoor&indoor VCB, power distribution terminals (DTU, FTU).
Year of establish: 10th-June-2009
Registered capital:RMB102,000,000 (USD 15,000,000 )
Company License: 91410104689749184A
Manufacturing workshop area:20,000 square meters
Company nature:private enterprise
Number of Employees:180
Senior engineer:20-30
Annual sales volume on 2019:RMB200,000,000 (USD 26,000,000)
Our Service:
1. quick response before the sales period help you got an order.
2. excellent service in production time let you know each step we made. 3.reliable quality solves your after-sale headache.
4. long-period quality warranty ensures you can buy without hesitation.
10KV-SCB dry type transformer main technical data
|
Rated power (kVA) |
High voltage (kV) |
H.V.Tap (kVA) |
Rated Frequency (Hz) |
Low Voltage (kV) |
Vector group |
Short circuit impedance |
No-load loss(w) |
On-load loss(w) |
No-load loss circuit (%) |
Main Body (without shell) | |
|
L*W*H(mm) |
Weight (Kg) |
||||||||||
| 20 |
6 6.3 6.6 10 10.5 11 |
±5% or +2×2.5% |
50 |
0.4 |
Yyn0 Dyn11 |
4 |
190 | 710 | 2.3 | 585*400*561 | 205 |
| 30 | 190 | 710 | 2.3 | 585*400*561 | 230 | ||||||
| 50 | 270 | 1000 | 2.2 | 585*400*636 | 300 | ||||||
| 80 | 370 | 1380 | 1.7 | 700*500*759 | 395 | ||||||
| 100 | 400 | 1570 | 1.7 | 710*500*779 |
475 |
||||||
