제품 상세 정보:
|
| 전압: | 11-33KV | 경향: | 630A 이하 |
|---|---|---|---|
| 주파수: | 50/60Hz | 제조소: | KNKONG |
| OEM / ODM: | 이메일에 의한 조사 | 모델: | HXGN-15 |
| 강조하다: | 33KV Gas Insulated Switchgear,33kv gis switchgear,SF6 Ring Main Unit |
||

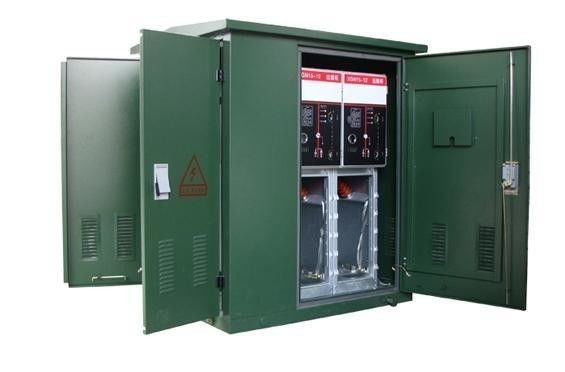

Product Introduction
General
The ring network refers to the ring power distribution network, that is, the power supply mainline forms a closed-loop, and the power supply supplies power to the ring main line and then distributes power all the way from the mainline through the high-voltage switch. The advantage of this is that each power distribution branch can take power from its left mainline and its right mainline. When the left mainline fails, it continues to receive power from the right mainline, and when the right mainline fails, it continues to receive power from the left mainline. In this way, even though the main power supply is the single-circuit power supply, However, from each distribution branch, the benefits similar to the dual power supply are obtained, thereby improving the reliability of the power supply.
Service Environment
1. Air temperature: -35℃~+40℃
2. Humidity: Monthly average humidity 95%; Daily average humidity 90%.
3. Altitude2500m
4. Ambient air not apparently polluted by corrosive and flammable gas, vapor, etc.
5. No frequent violent shake
Technical Data
| No. | Item | Unit | Parameter | |||
| 1 | Rated voltage | kV | 12 | 24 | 36 | |
| 2 | Rated frequency | Hz | 50/60 | |||
| 3 | Rated current | A | 630(1250*) | |||
| 4 |
1min Power frequency withstand voltage |
wet | kV | 38 | 50 | 70 |
| dry | kV | 48 | 60 | 85 | ||
| 5 | Lightning impulse withstand voltage | kV | 75 | 125/150 | 170 | |
| 6 | Rated short circuit breaking current (peak) | kA | 80 | 63 | 63 | |
| 7 | Rated active load and close circuit breaking current | A | 63 | 50 | 50 | |
| 8 | Rated transferring current | A | 1700 | 1200 | 1200 | |
| 9 | Rated short circuit making current (peak) | kA | 80 | 63 | 63 | |
| 10 | Rated cable(line) charging breaking current | A |
50 and 10 50/10 |
|||
| 11 | Cable charge breaking current in earthing fault | A | 20 | 20 | 20 | |
| 12 | Rated withstand current (peak) | kA | 80 | 63 | 63 | |
| 13 | Short-time withstand current (2s) | kA | 25 | 20 | 20 | |
| 14 | Mechanism life | times | 5000 | 2000 | 2000 | |
Note: For short circuit breaking and peak current is based on Fuse plus combination
