제품 상세 정보:
원래 장소: 중국
브랜드 이름: KNKONG
인증: ISO9001:2015,CCC,ISO9001,CE, CB,IEC60898
모델 번호: ZW32
결제 및 배송 조건:
최소 주문 수량: 1
가격: USD 1000-2000 Each
포장 세부 사항: 표준 수출 포장
배달 시간: 15 일로 일합니다
지불 조건: L / C, T / T, 웨스턴 유니온
공급 능력: 달 당 500 단위

IEC60898 CB 50HZ 전기적 볼륨 제어 블록 회로 차단기 야외 볼륨 제어 블록 차단기

설명
전압: 12kV 경향: 630A
주파수: 50HZ/60HZ 기준: CCC,ISO9001, CE, CB,IEC60898
OEM / ODM: 이용 가능합니다 제조소: KNKONG
하이 라이트:

50HZ 전기적 볼륨 제어 블록 회로 차단기

,

전기적 볼륨 제어 블록 회로 차단기

,

IEC60898 야외 볼륨 제어 블록 브레이커

IEC60898 CB 50HZ Electrical VCB Circuit Breaker Outdoor VCB Breaker

12kv Outdoor Vacuum Circuit Breaker

12kv outdoor VCB
AC three-phase, 50HZ
630A, 1250A
OEM & ODM,Complete equipment
CCC,ISO9001,CE, CB,IEC60898
Inquire

Product Introduction

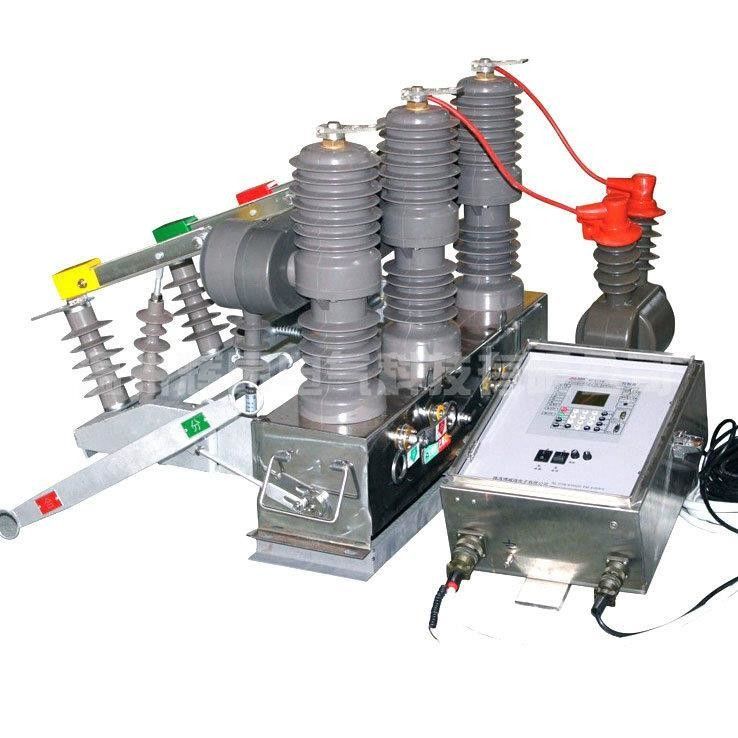

ZW32-12 outdoor high-voltage pole vacuum circuit breaker is suitable for three-phase AC 50Hz, rated voltage 12KV and below power distribution system, mainly used for switching load current, overload current and short-circuit current of switching lines, and can also be used as agricultural The section switch of the power grid and small power system is an upgraded product of the oil-free transformation of urban power grids and rural power grids.
It has the characteristics of small size, light weight, anti-condensation, maintenance-free, etc., and can adapt to lower harsh weather conditions and dirty environments.



 Features

  • High reliability, high mechanical and electrical life;
  • No maintenance;
  • Small size, lightweight, easy to install;
  • Standard relay protection and quick automatic reclosing function;



Standard
GB1984 "AC High Voltage Circuit Breaker"
GB11022 "Common technical requirements for high-voltage switchgear and control equipment standards"
GB311.1-6 "Insulation coordination of high-voltage power transmission and transformation equipment"
GB763 "The heating of AC high-voltage electrical appliances during long-term work"
GB2706 "Test Method for Dynamic and Thermal Stability of AC High Voltage Electrical Apparatus"
GB3309 "Mechanical Test of High Voltage Switchgear at Room Temperature"
DL/T593 "Common ordering technical conditions for high-voltage switchgear"





Normal service condition

Altitude

≤1000m

Ambient temperature

Max

+40℃

Min

-15℃

Ambient humidity:

Maximum average humidity

24 hour ≤95%

1 month ≤90%

Maximum water vapor pressure

24 hours ≤2.2kpa

1 month ≤1.8kpa



The ambient air has no obvious pollution of dust smoke, corrosive or combustible gases, steams or smog



12kv Outdoor VCB Technical Parameters

No. Items Unit Parameter
1 Rated voltage KV 12
2 Rated current A 630 1250
3 Rated frequency Hz 50/60



4



1 minute

withstand pressure

Wet

KV

34
    Dry   42
    To ground   49



5

Lightning shock withstand current phase, to

ground

KV



75/85

6 Rated short-circuit breaking current

KA

20 25
7 Rated short-circuit closing current   50 63
8 Rated peak value of withstanding current   50 63
9 4s short-time withstand current   20 25
10 Rated operating sequence   O-0.3s-CO-180s-CO



11

Rated short circuit breaking current breaking

times

times



30

12 Mechanical endurance   30000
13 Permanent magnet control voltage V AC/DC 220



14

Secondary circuit, 1-minute power frequency

withstand voltage

KV



2



Standard Drawing
